Product Description

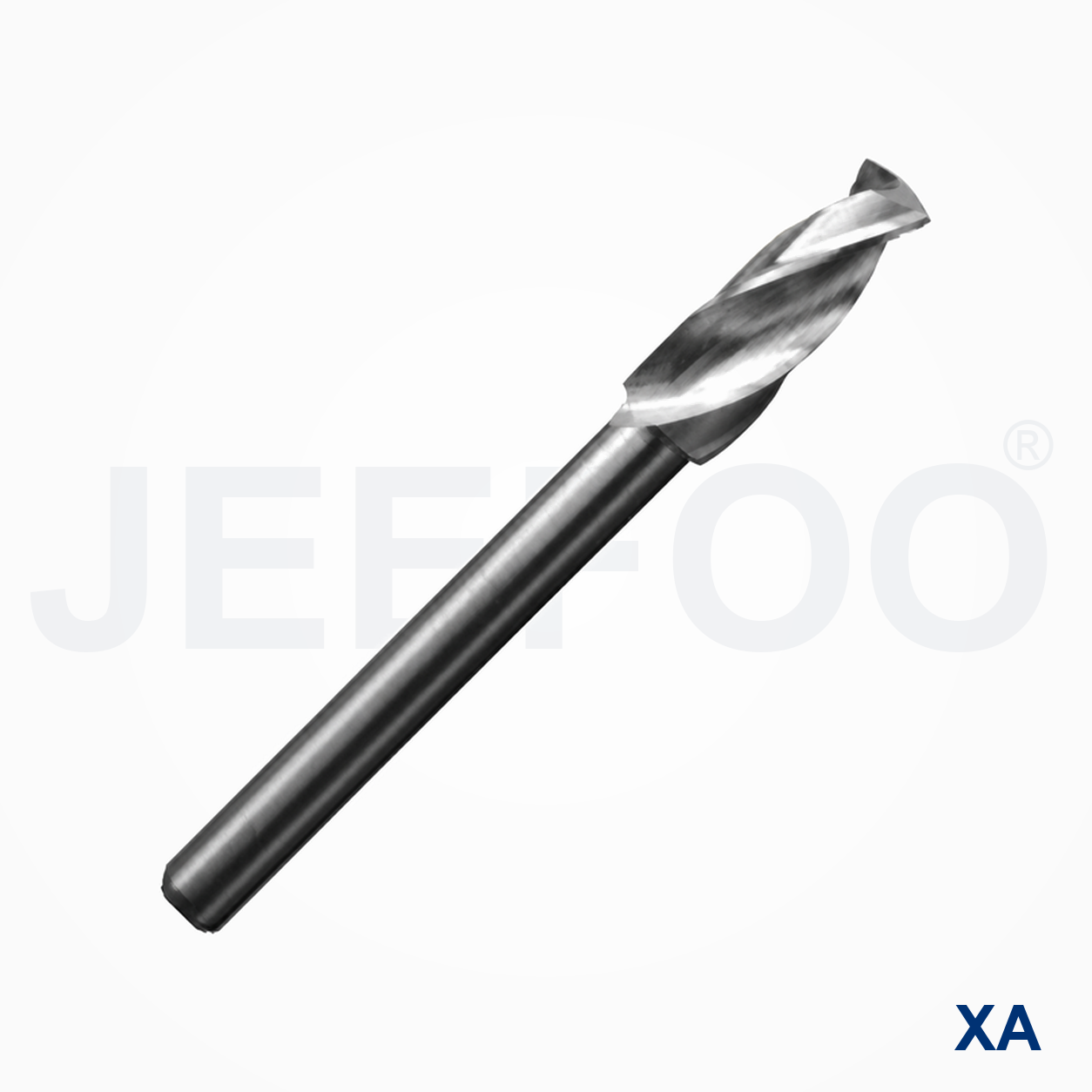

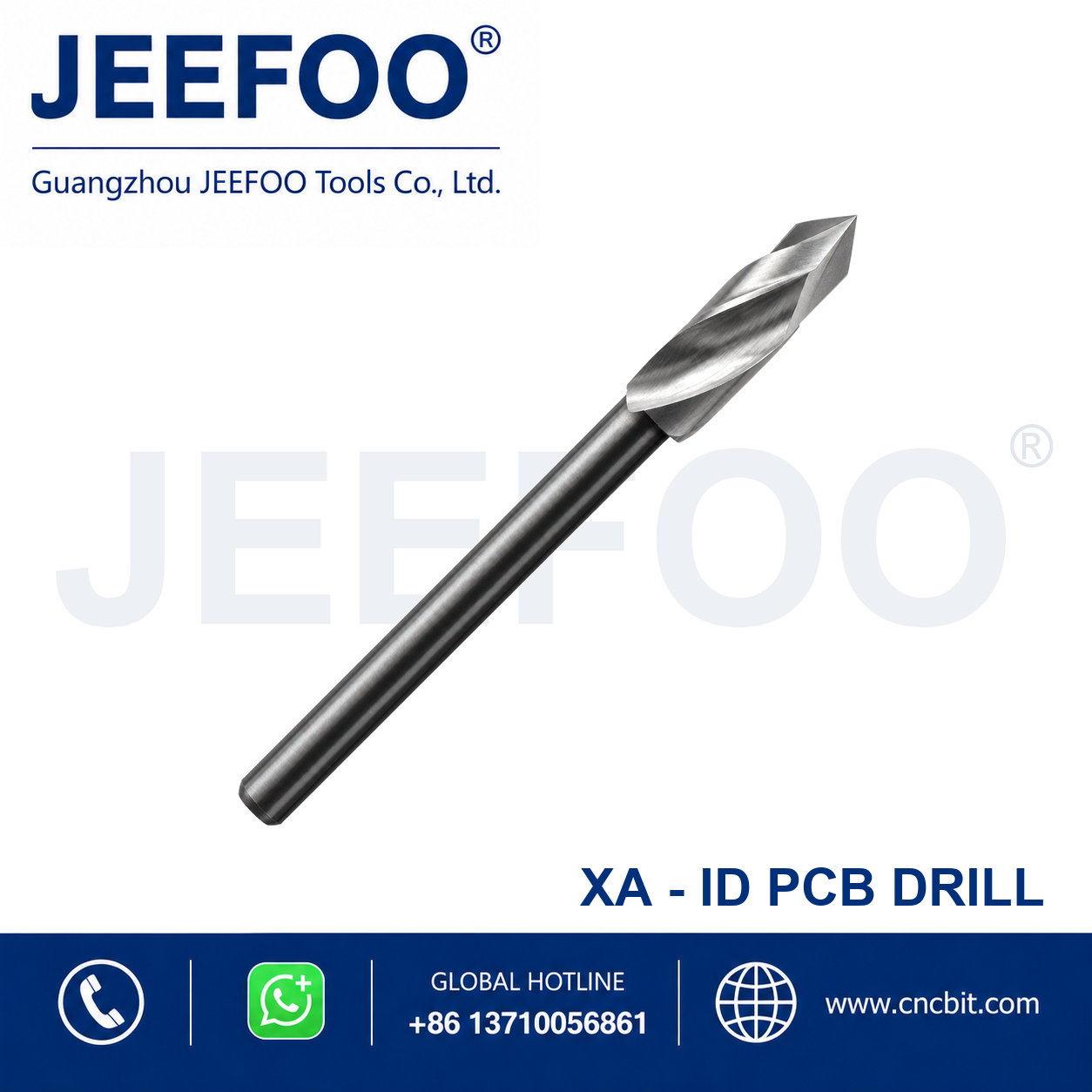

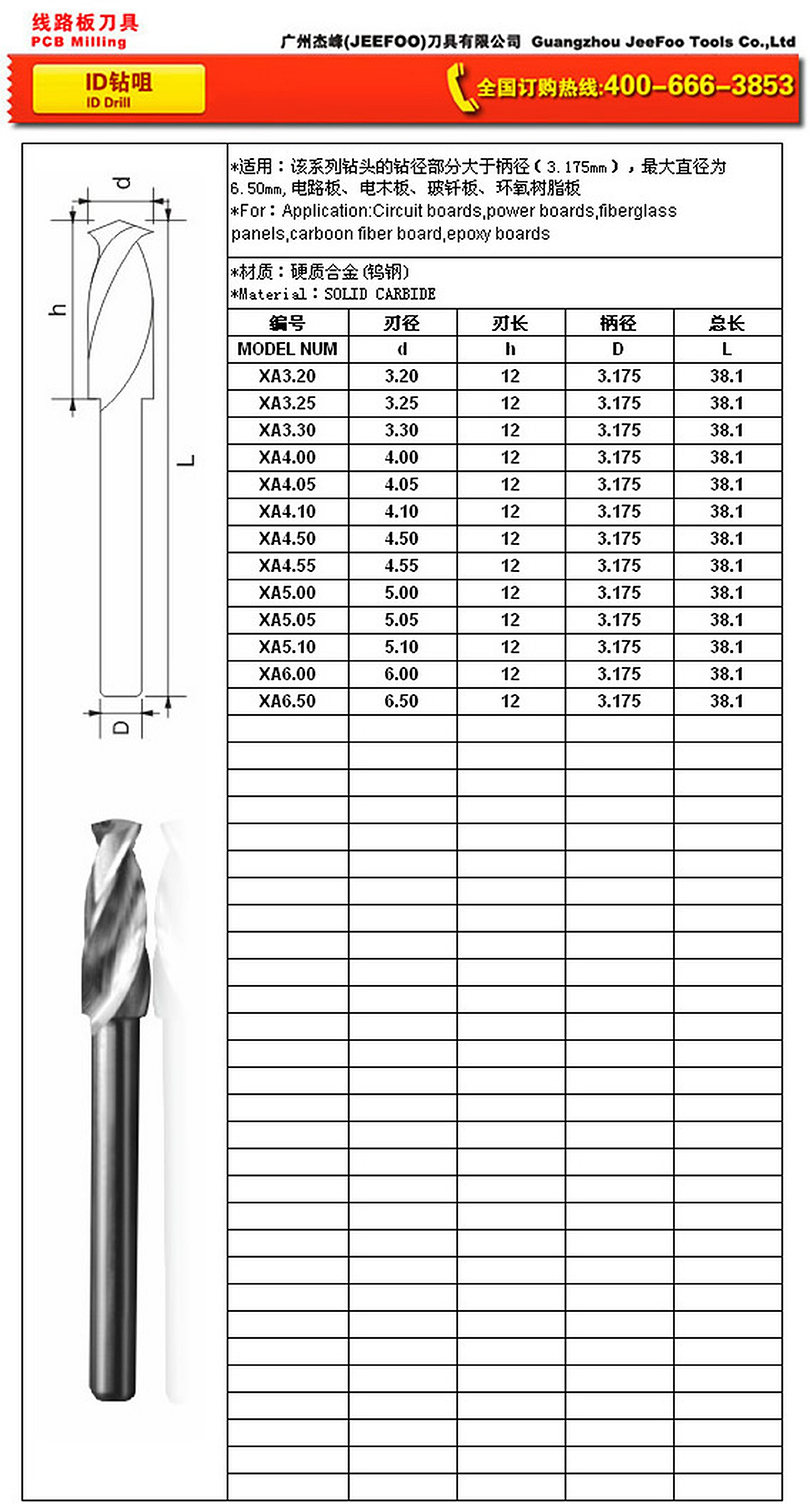

This XA solid carbide ID drill bit is designed for larger-diameter holes in printed circuit boards and reinforced sheet materials. The catalog range covers cutting diameters from 3.20 mm to 6.50 mm with a 3.175 mm shank, 12 mm cutting length and 38.1 mm overall length.
Its rigid carbide construction and multi-edge drill geometry support stable hole machining in circuit boards, power boards, fiberglass panels, carbon-fiber board and epoxy board.
Recommended Applications
- PCB and power-board drilling
- Fiberglass and epoxy panels
- Carbon-fiber reinforced sheets
