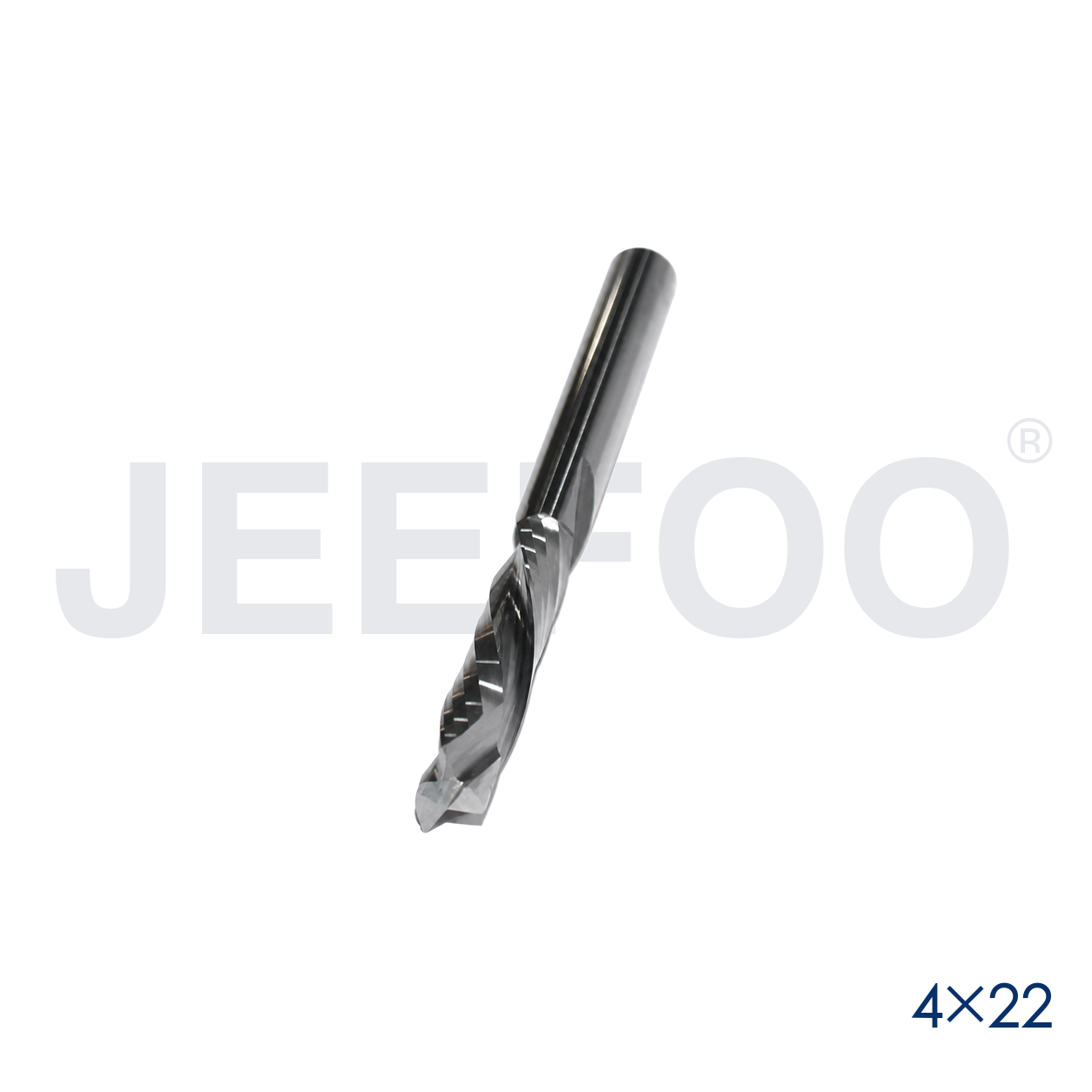

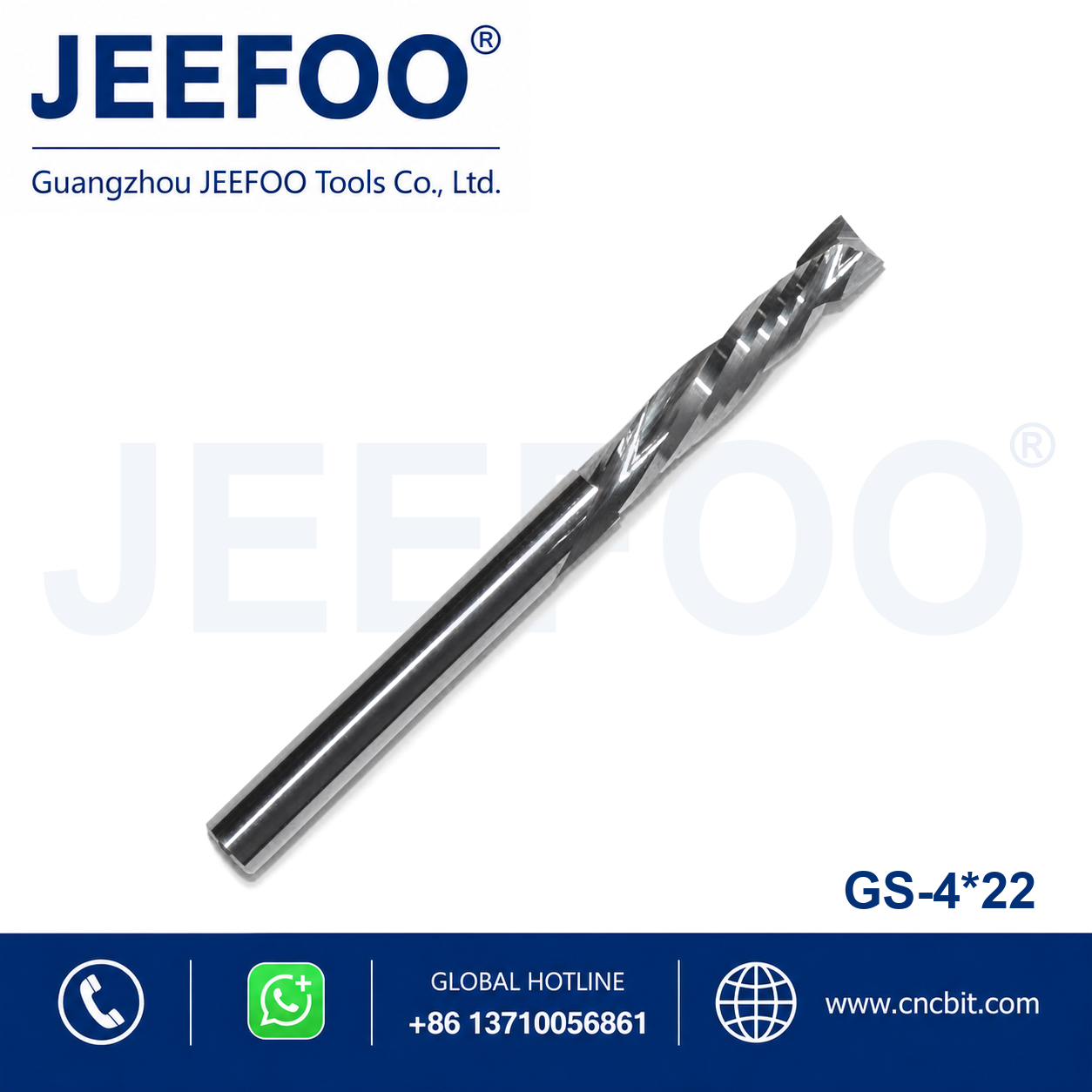

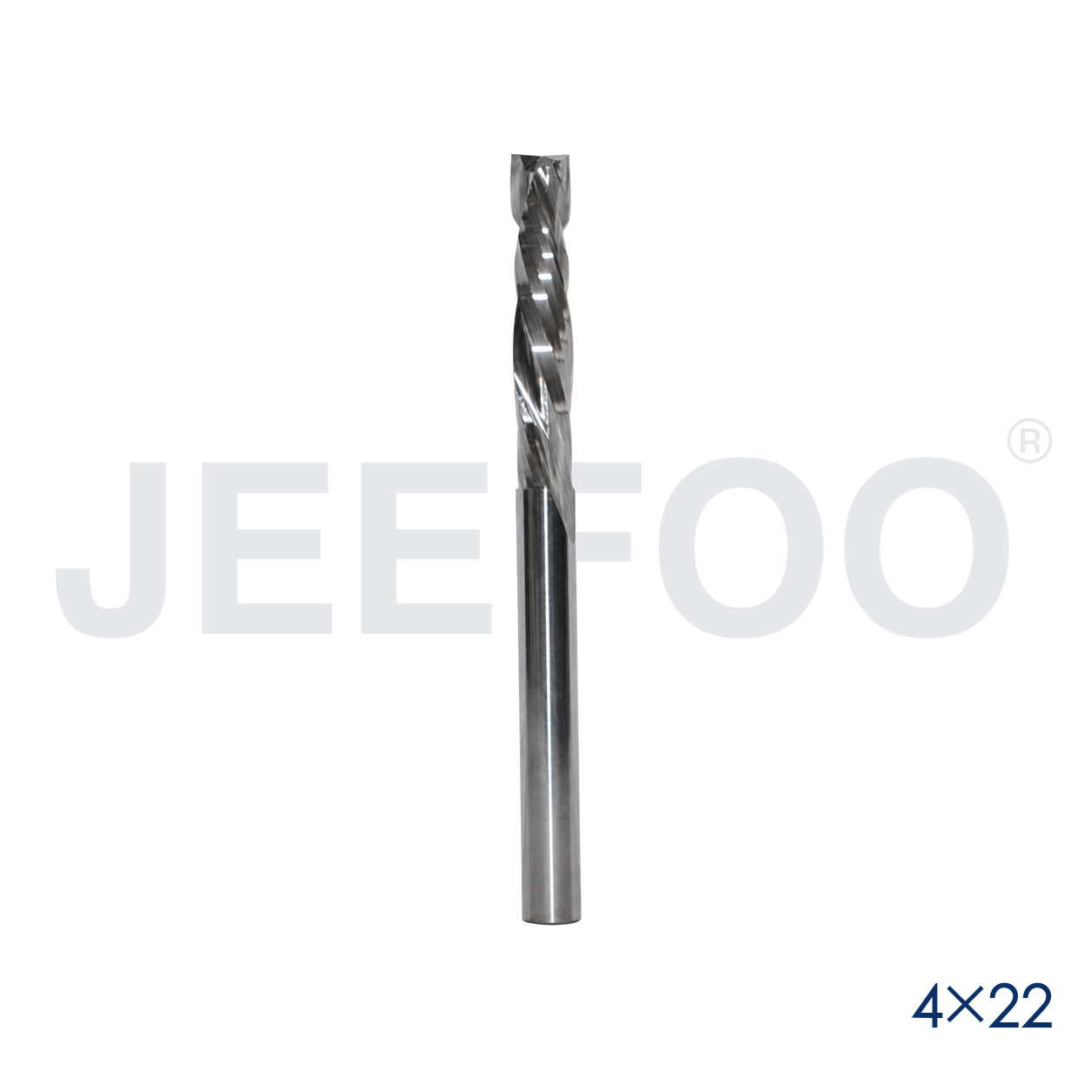

4×22 GS A-Series Compression Router Bits are solid carbide compression cutters engineered for clean CNC machining on laminated panels, plywood, MDF, hardwood, acrylic, PVC and other common routing materials. The coordinated up-cut and down-cut flute geometry controls fibers on both faces of the workpiece, helping operators produce smooth top and bottom edges in one machining pass.
4×22 GS A-Series Compression Router Bits for Clean Two-Sided Edges
The cutting section combines upward and downward chip flow. The upper flute presses the top surface downward while the lower flute lifts the bottom surface toward the center of the panel. This compression action reduces breakout, fuzzing and laminate chipping. It is especially useful when both faces remain visible after cutting and when secondary sanding would slow production.
Solid Carbide Construction
These GS compression router bits use solid tungsten carbide for rigidity, wear resistance and stable cutting accuracy. A carefully ground edge supports consistent chip formation and helps limit heat during continuous CNC work. Correct spindle speed, feed rate, tool holding and dust extraction further improve finish quality and useful tool life.
Recommended Applications
Use the cutter for softwood, hardwood, laminated plywood, particleboard, MDF, HDF, veneer-faced board, plastic-faced sheet, artificial stone, acrylic, PVC and other organic materials. The design is suitable for profile cutting, slotting, nesting and through-cut operations on CNC router machines. JEEFOO can also manufacture special dimensions for application-specific tooling requirements.
Cutting Advantages
- Compression flute action supports clean top and bottom panel surfaces.
- Precision edge grinding promotes smooth cutting and controlled chip removal.
- Solid carbide construction provides rigidity and long service life.
- Balanced upward and downward chip flow reduces visible breakout.
- Suitable for production routing of wood panels and selected plastics.
CNC Setup Guidance
Secure the tool in a clean, accurate collet and use the shortest practical projection. Confirm that the compression point is positioned within the material thickness so both flute directions engage correctly. Select feeds and speeds according to material density, machine rigidity and cut depth. Avoid excessive dwelling because rubbing generates heat and may reduce edge life.
For best results, make sure the workpiece is held firmly and the tool path allows efficient chip evacuation. A suitable extraction system keeps the cutting area clear. Inspect the cutting edge before production and replace a worn tool when surface quality begins to decline. A test cut is recommended whenever material, spindle speed or holding conditions change.
Size and Selection
Size: 4×22. Confirm shank diameter, cutting diameter, cutting length and overall length before ordering. The 4×22 GS A-Series Compression Router Bits configuration is intended for projects that require reliable compression cutting and a refined finish on both sides of the panel.
Why Choose JEEFOO Compression Cutting Tools
JEEFOO focuses on consistent geometry, clean edge preparation and practical CNC performance. The 4×22 GS A-Series Compression Router Bits option supports repeatable production where panel appearance matters on both faces. Buyers can review additional JEEFOO CNC router cutting tools and contact the team for dimension confirmation, application advice or customized tooling.
Frequently Asked Questions
When should a compression bit be used?
Choose a compression bit when the top and bottom surfaces must remain clean, particularly on laminated panels, veneered plywood and MDF. The opposing flute directions help keep surface layers pressed toward the material center.
How should the cutting length be selected?
Select a cutting length that safely covers the workpiece thickness while keeping tool projection controlled. Verify that the transition between the up-cut and down-cut sections sits correctly inside the panel during through cutting.
Always follow the CNC machine manufacturer’s safety, tool-holding and operating guidance. Confirm that the collet, spindle and workholding system are suitable before running the 4×22 GS A-Series Compression Router Bits at production feed rates.
For general background on machine-controlled routing, see this overview of CNC router technology. Apply the machine maker’s instructions and site safety rules to every setup.
