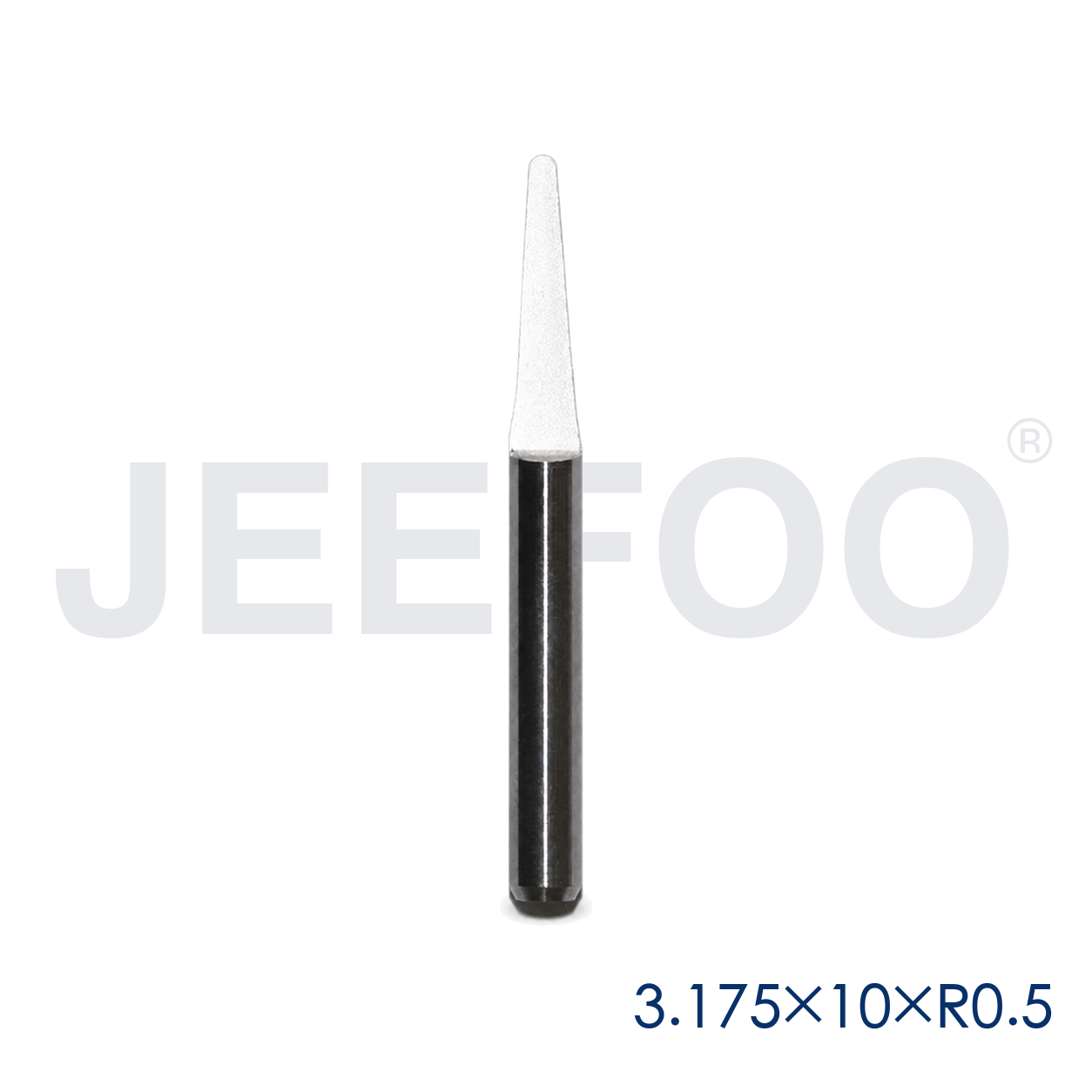

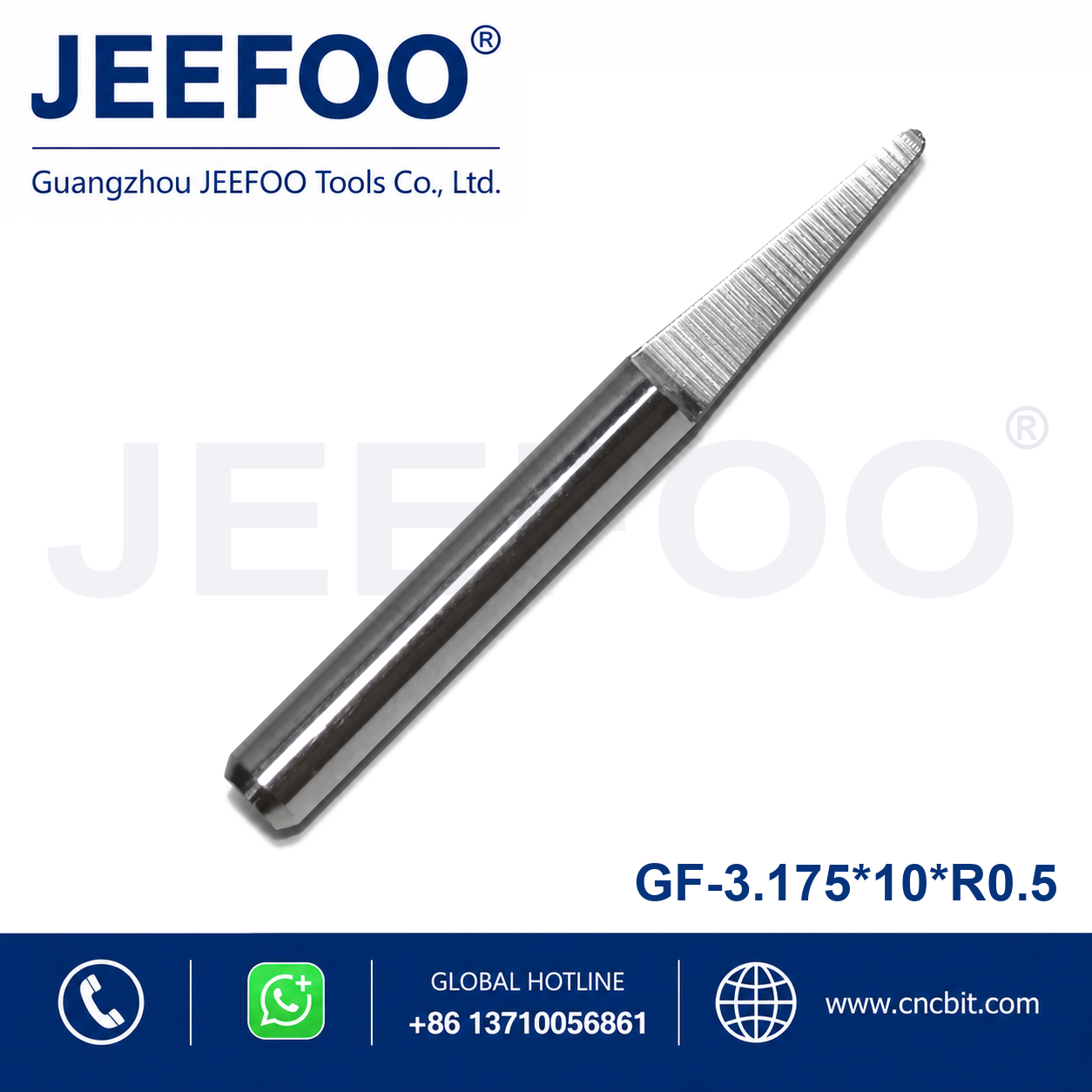

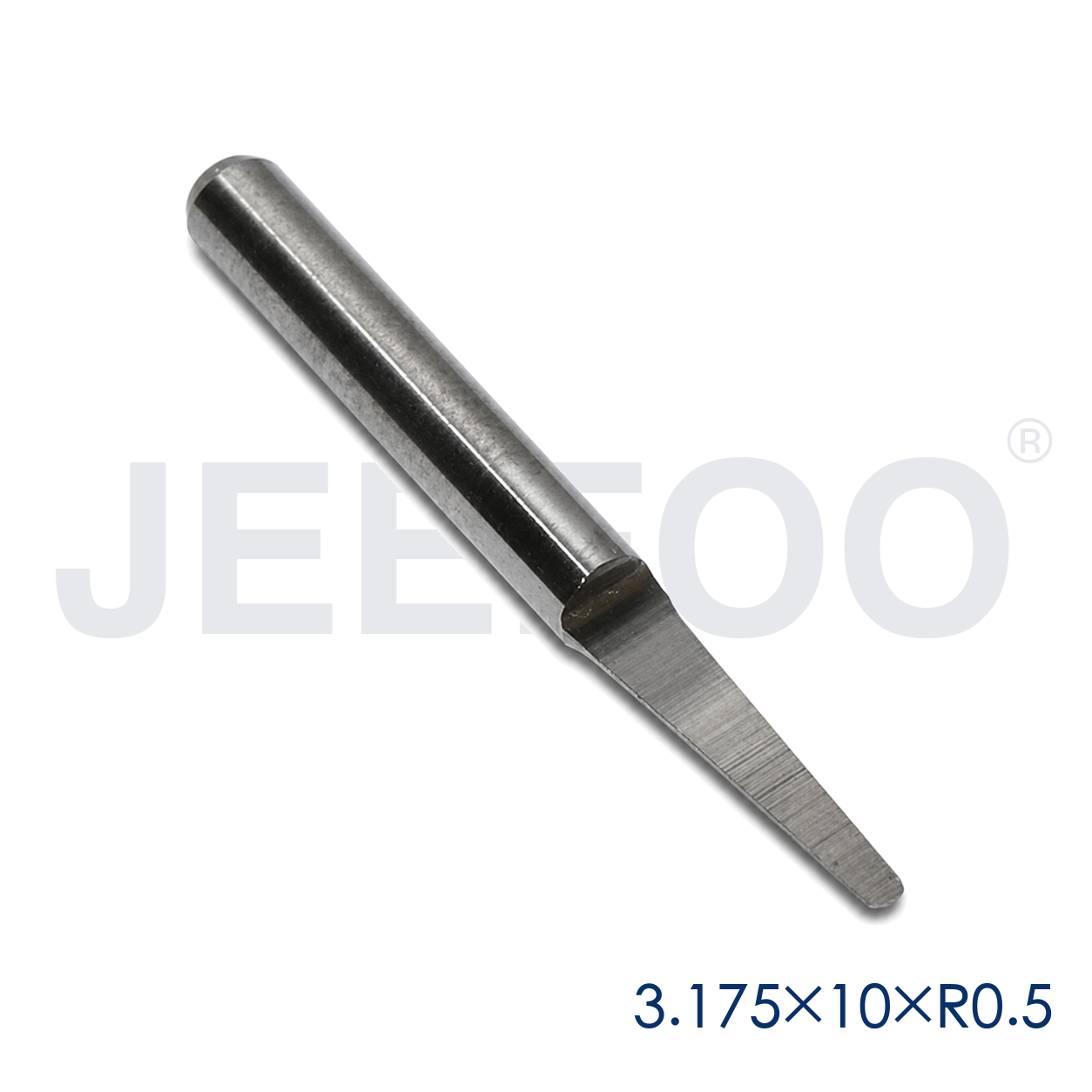

3.175x10xR0.5 radiused bottom engraving bit is a solid carbide precision cutter developed for fine three-dimensional relief, rounded grooves and detailed CNC engraving. Its radiused cutting tip blends surfaces smoothly while the tapered profile adds rigidity for controlled, accurate carving.
Applications: Acrylic, PVC, MDF, hardwood, density board, plastics and suitable non-ferrous materials. It is ideal for relief carving, lettering, curved channels, fine modeling and finishing.
Features: Ultra-fine tungsten carbide construction, precision-ground geometry, sharp polished cutting edges, stable chip evacuation and excellent wear resistance. The radiused bottom helps reduce visible tool marks on contoured surfaces.
Size: 3.175x10xR0.5
3.175x10xR0.5 Radiused Bottom Engraving Bit Performance
Use a clean, correctly sized collet and keep tool overhang short. Match spindle speed, feed and pass depth to the material and machine rigidity. A shallow finishing pass provides the smoothest relief surface and longest tool life.
Explore our CNC router bit collection for related engraving and cutting tools. Learn more about tungsten carbide properties.
